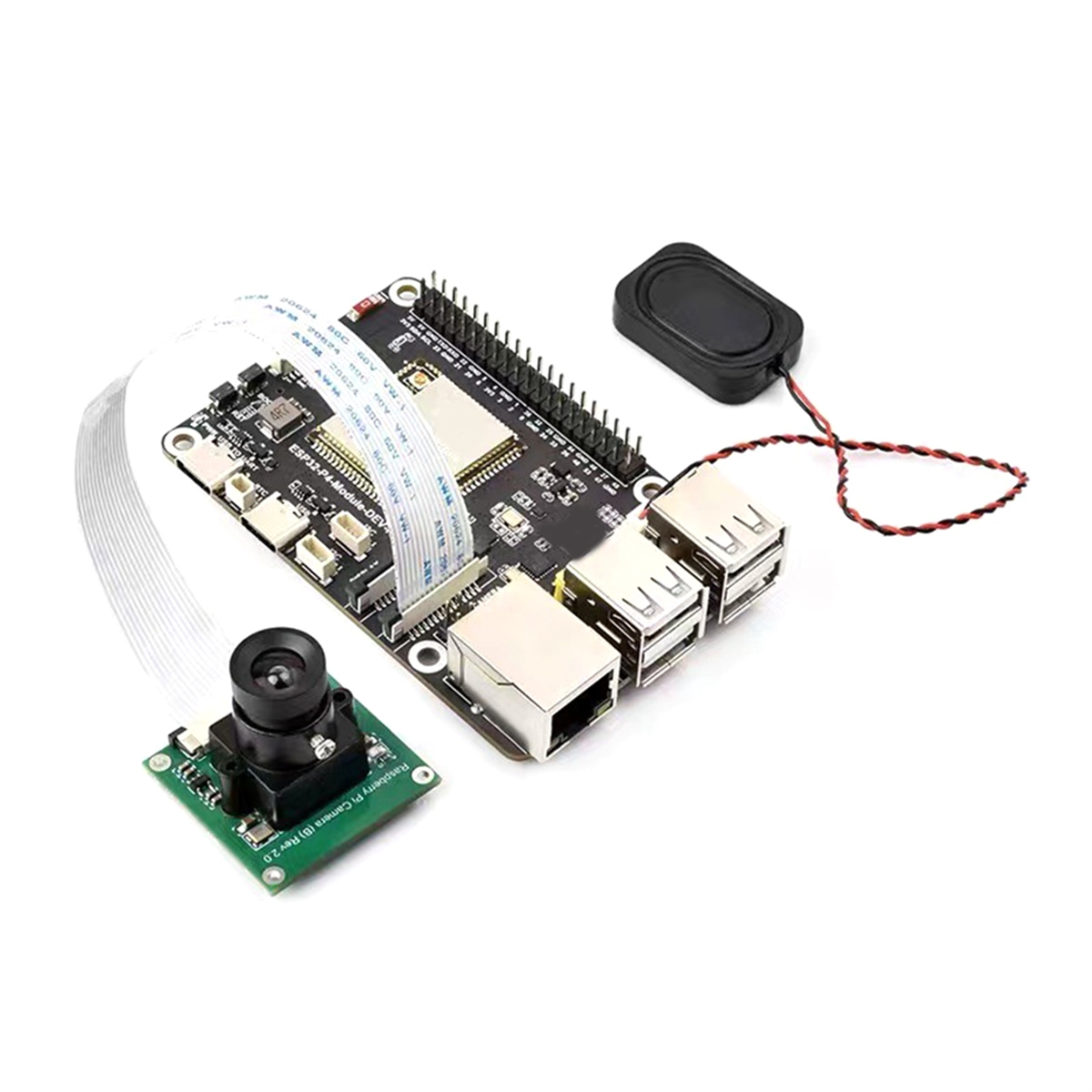

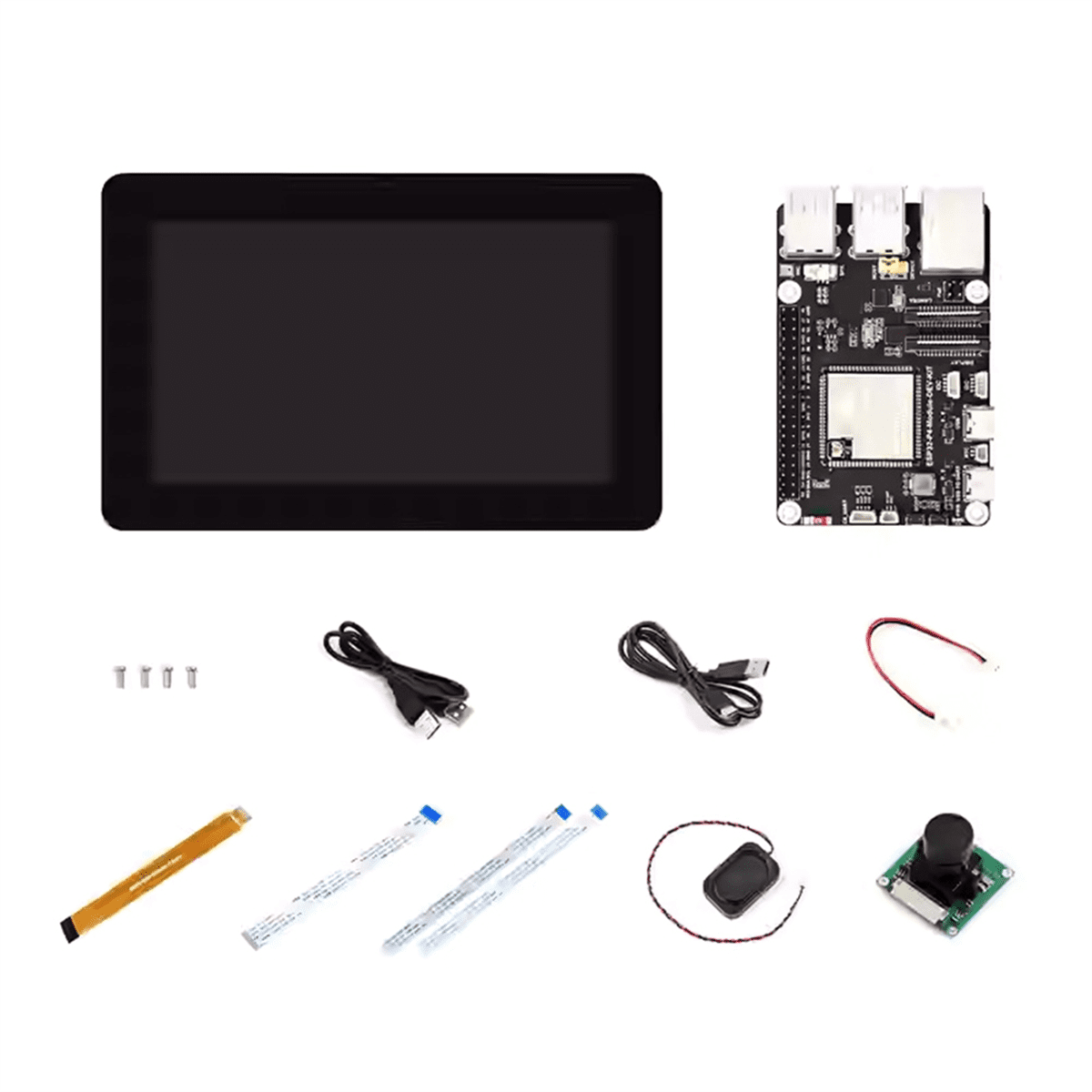

ESP32-P4-Module 7-Inch Touch Screen 720x1280 with 5MP OV5647 Camera Speaker Supports for Wi-Fi6/BLE POE Interface,1 x development board 1 x camera 1 x speaker 1 x display

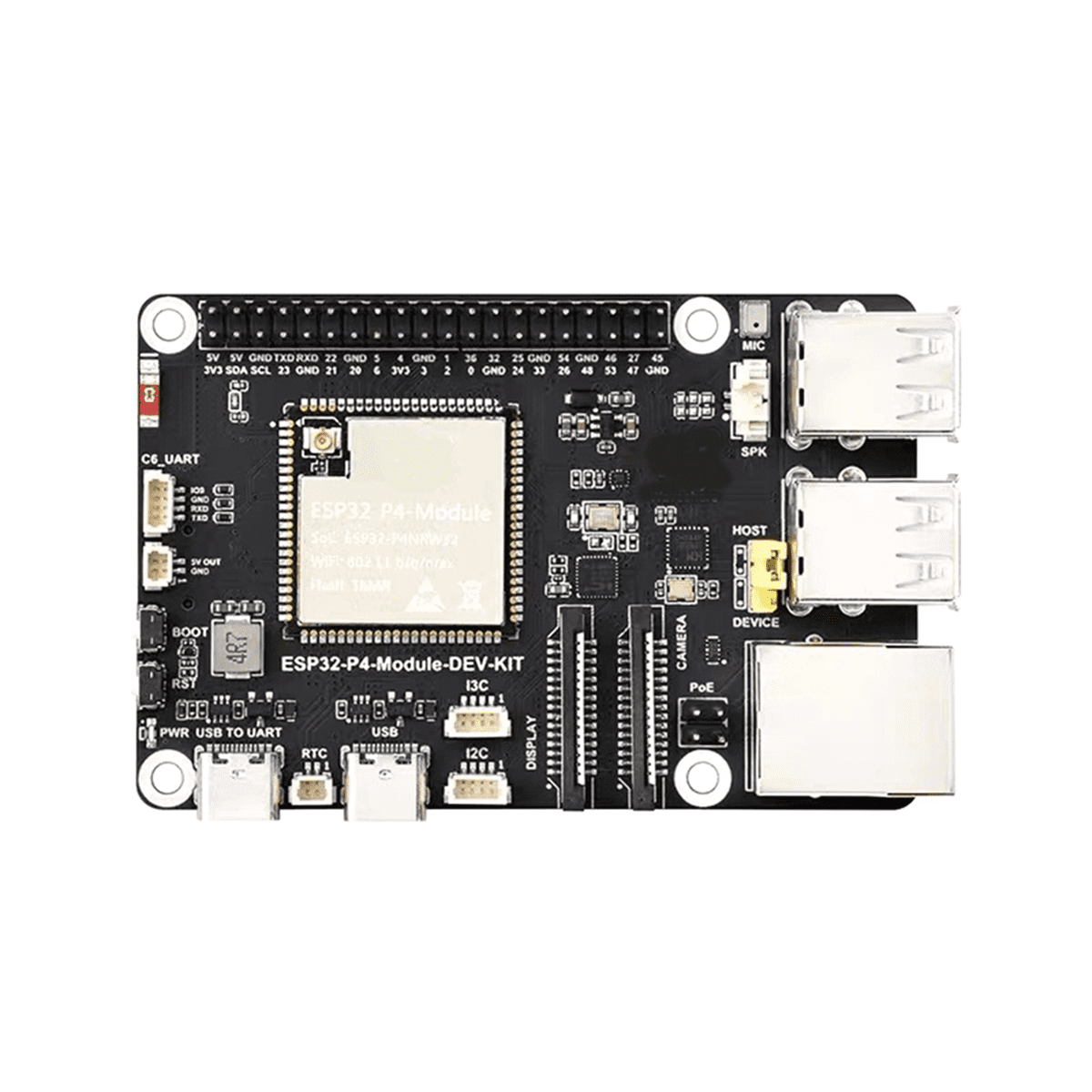

This product is a multimedia development board based on ESP32-P4, integrated with ESP32-C6, supporting Wi-Fi 6 and Bluetooth 5 wireless connections. It provides a rich set of human-computer interaction interfaces, including MIPI- PWM, MCPWM, , ADC, UART, TWAI, etc. In addition, it supports USB OTG 2.0 , reserves an RJ45 Ethernet interface for expandable PoE, and has an onboard 40PIN GPIO expansion interface, which is compatible with some for HAT expansion boards to achieve a range of application adaptation.<br>ESP32-P4 uses a 400MHz dual-core RISC-V processor, supports a maximum of 32MB PSRAM, and has peripherals such as USB 2.0, MIPI-/, and 264 encoding to meet the needs of low-cost, high-performance, and low-power multimedia development. In addition, ESP32-P4 integrates digital signature peripherals and a dedicated key management unit to data and operation security. ESP32-P4-Module-DEV-KIT is designed for high-performance and high-security applications to meet the needs of embedded systems in human-computer interaction, edge computing, 10 expansion, etc. (Integrated Image Signal Processor ISP), MIPI-, SPI, I2S, I2C, LED<br>(The product appearance and printed words depending on the batch, but this does not affect use)<br>Color: As shown<br>Material: PCB<br><br>Package Contents:<br>1 x development board<br>1 x camera<br>1 x speaker<br>1 x display<br><br>Only the above package content, other products are not included.<br>Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

• 2x20 pin headers on the board, 28 remaining programmable GPIOs.
• High-performance MCU with RISC-V 32-bit dual-core and single-core processors.
• Chip package stacked 32MB PSRAM, module integrated 16MB Nor
• Powerful image and voice processing capabilities, image and voice processing interfaces include JPEG codec, pixel processing accelerator (), image signal processor (ISP), H264 video encoder

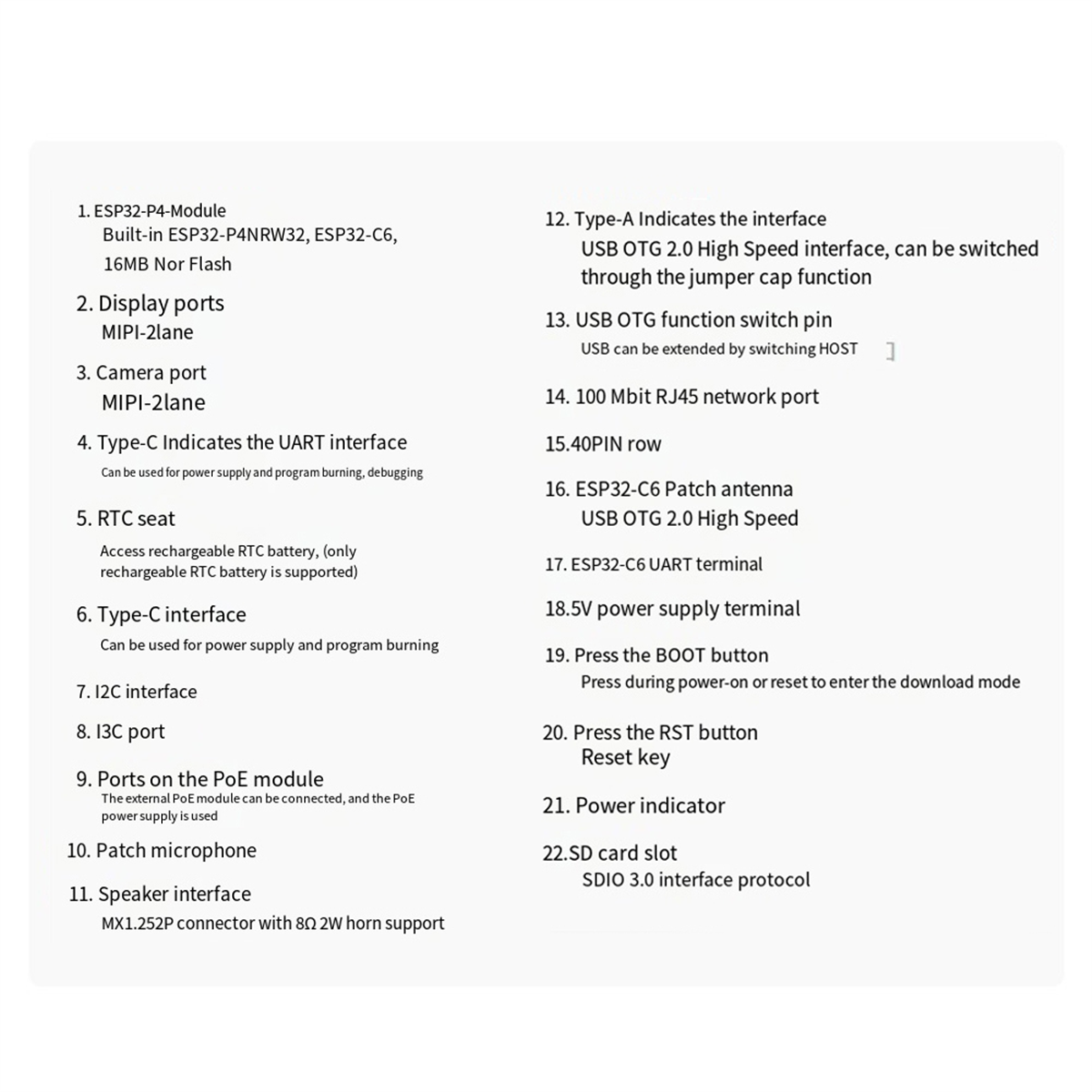

• Common peripheral interfaces such as MIPI-, MIPI-, USB 2.0 OTG, Ethernet, SDIO 3.0, SD card slot, microphone, speaker terminal and RTC battery terminal are brought out on the board.
