Pair of 5-Bolt on 4-1/2 Inch Hub Assembly (AKRD-3500545F) Includes (2) Flanged, 1-3/8 Inch to 1-1/16 Inch Tapered Spindles & Bearings

Easily build your own axle with this 3,500 lb rated hub assembly. This kit includes (2) - 5-Bolt on 4-1/2 inch bolt center hubs for 3,500 lb axles, (2) - 1-3/8" to 1-1/16" tapered spindles, (2) castle nuts, (2) cotter pins, (10) 1/2-20 lug nuts, (2) 2.561" O.D - 1.719" I.D double lipped grease seals, (2) L-44649 1-1/16" I.D bearings, (2) L-68149 1-3/8" bearings, (2) spindle washers, and (2) 1.986 O.D dust caps with (2) plugs. PLEASE NOTE: Fabricating an axle requires the proper equipment needed to apply a weld. If you are uncomfortable with your welding capabilities, this project should be handled by a qualified welder.

• Pair of flanged 1-3/8" to 1-1/16" tapered spindles.
• Bearings included - (2) L-68149 1-3/8" I.D & (2) L-44649 1-1/16" I.D
• Hubs have pre-installed pressed in races.
• Hub has a 5-bolt pattern on 4-1/2" bolt circle. Pilot diameter 2.59", flange diameter 6-1/2" and measures 4-1/4" tall (through center of hub)

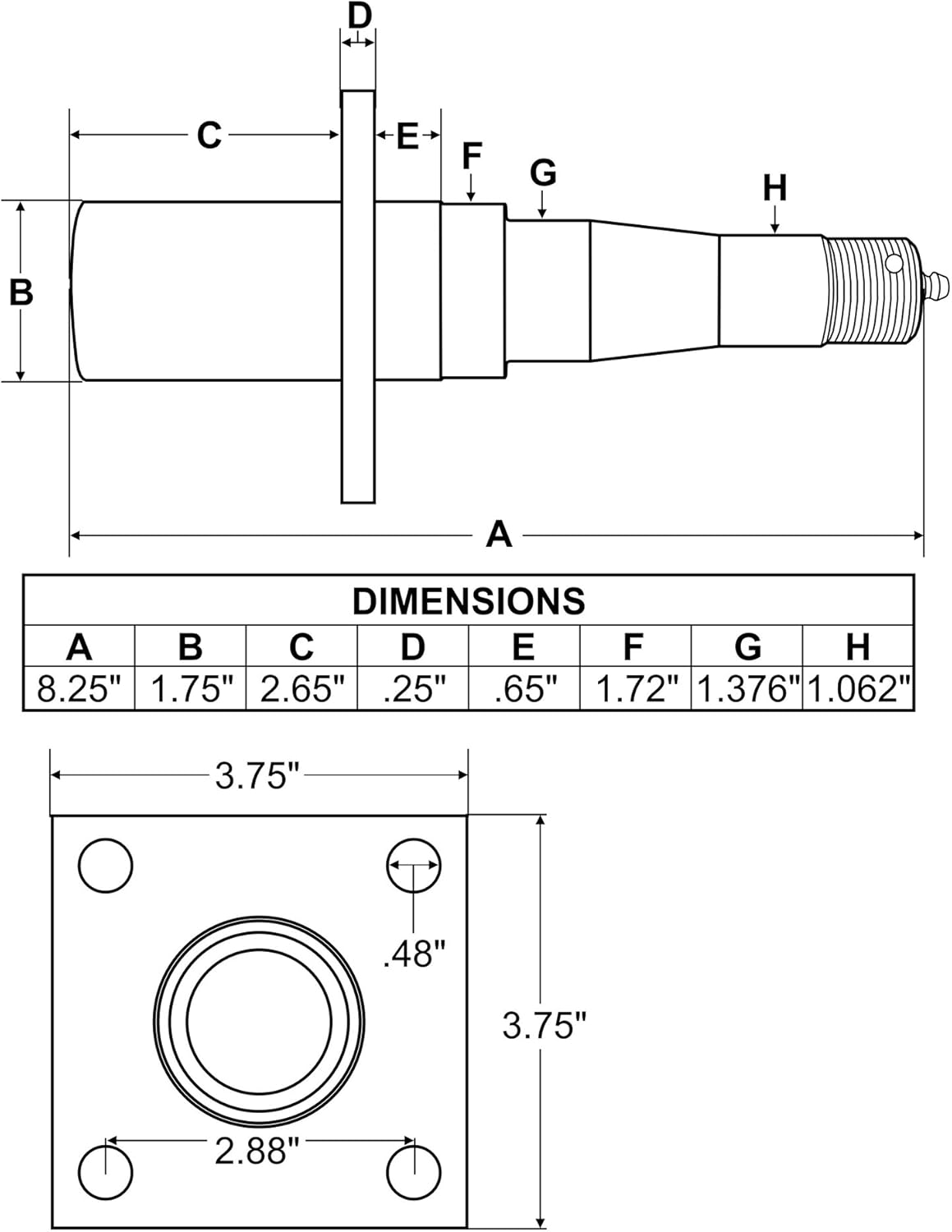

• Spindles feature brake flange and a round 1-3/4" stock diameter with a tapered spindle surface of 1-3/8" & 1-1/16"
