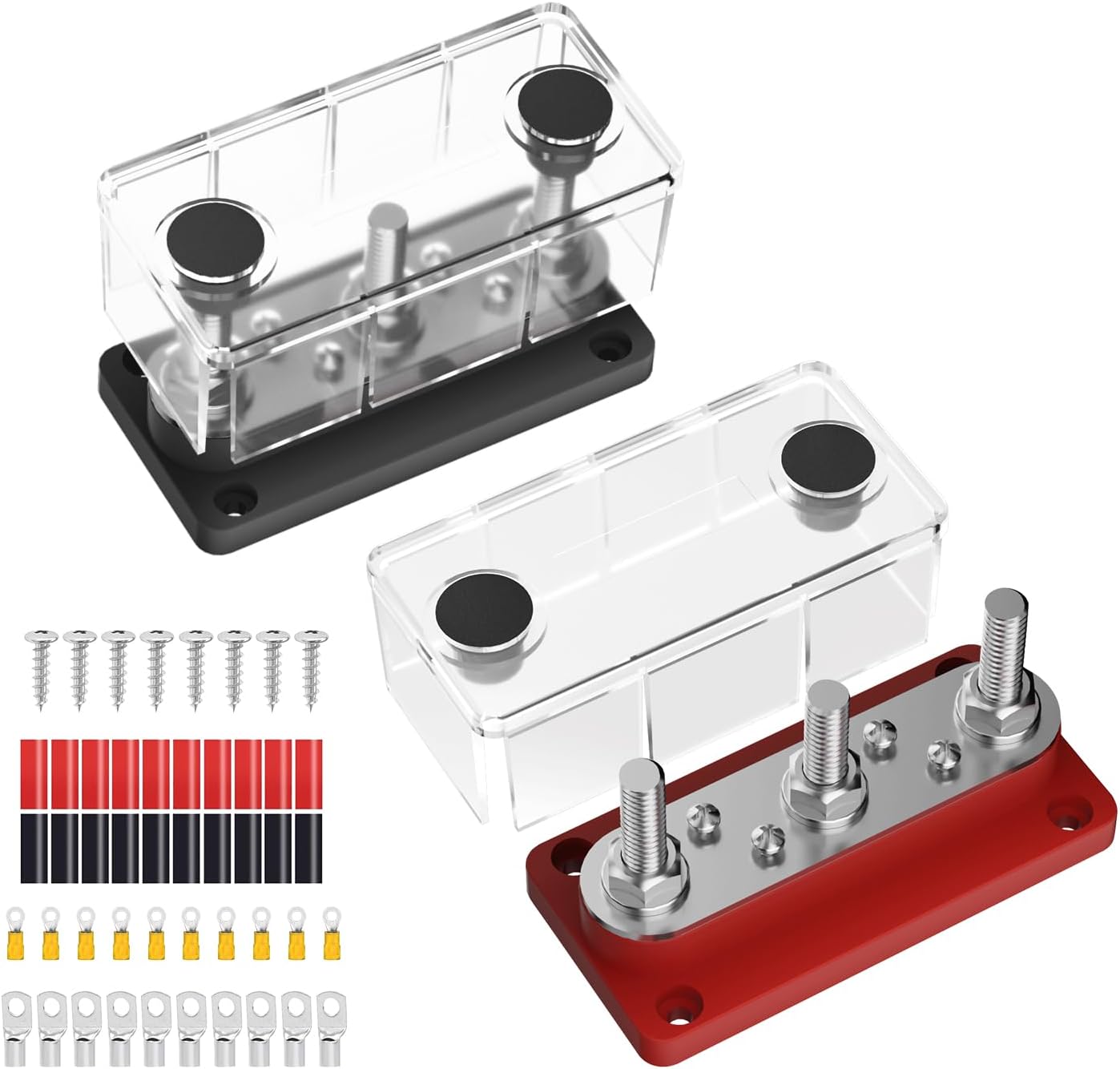

600A Bus Bar Power Distribution Block 3 x 3/8" (M10) Terminal Studs 48V DC Positive & Ground Busbar Terminal Block wtih Cover for Marine Automotive RV Boat(Black & Red)
4.2 (55 items)
Limited Time SaleUS$31.79 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209171083 | Release Date | 2026/03/29 | List Price | US$21.20 | Model Number | 209171083 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Dimensions】: The bus bar is measured (L x W x H): 4.02“x 1.97”x 2.67“（102x50x68mm）,surface screw fixed installation, four mounting holes make this terminal block easier to be mounted in any orientation.
- 【Terminals】: Bus bar 12v includes - M10 (3/8") terminal studs x 3,two power bus bars in the package - one positive bus bar and one ground bus bar.
- 【Voltage & Current】: Max voltage: 300V AC, 48V DC. Max continuous amperage:600A DC.This battery distribution block will be suitable for both AC and DC systems.
- 【High Quality】: Bus Material: The battery distribution block is made of Tin-plated copper, which has good electric conduct performance and sturdy rust-resistant.The base is made of flame-retardant polycarbonate(PC) base reinforced to protect your safety, ensures great mechanical strength and durability.
- 【Widely Used】: The Junction block is widely used in12V-48V auto marine,boats,Trailers,trucks, RVs and so on.
| Color | Black & Red 600A - 3 x 3/8" ( M10) Studs |
|---|---|
| Model | US4-AOA5013CRB-M10 |
| Voltage | 300 Volts (AC) |
| Brand Name | jamgoer |
| Part Number | US4-AOA5013CRB-M10 |
| Manufacturer | jamgoer |
| Material Type | Copper, Nylon, Polycarbonate (PC) |
| Mounting Type | surface |
| Connector Type | Screw |
| Current Rating | 600 Amps |
| Number Of Poles | 3 |
| Centerline Length | 102 Millimeters |
| Number Of Contacts | 3 |
| Number of Positions | 3 |
| Item Dimensions W x H | 4.02"W x 2.67"H |
